TY-18VS,22VS,26VS

18VS

22VS

26VS

MODEL

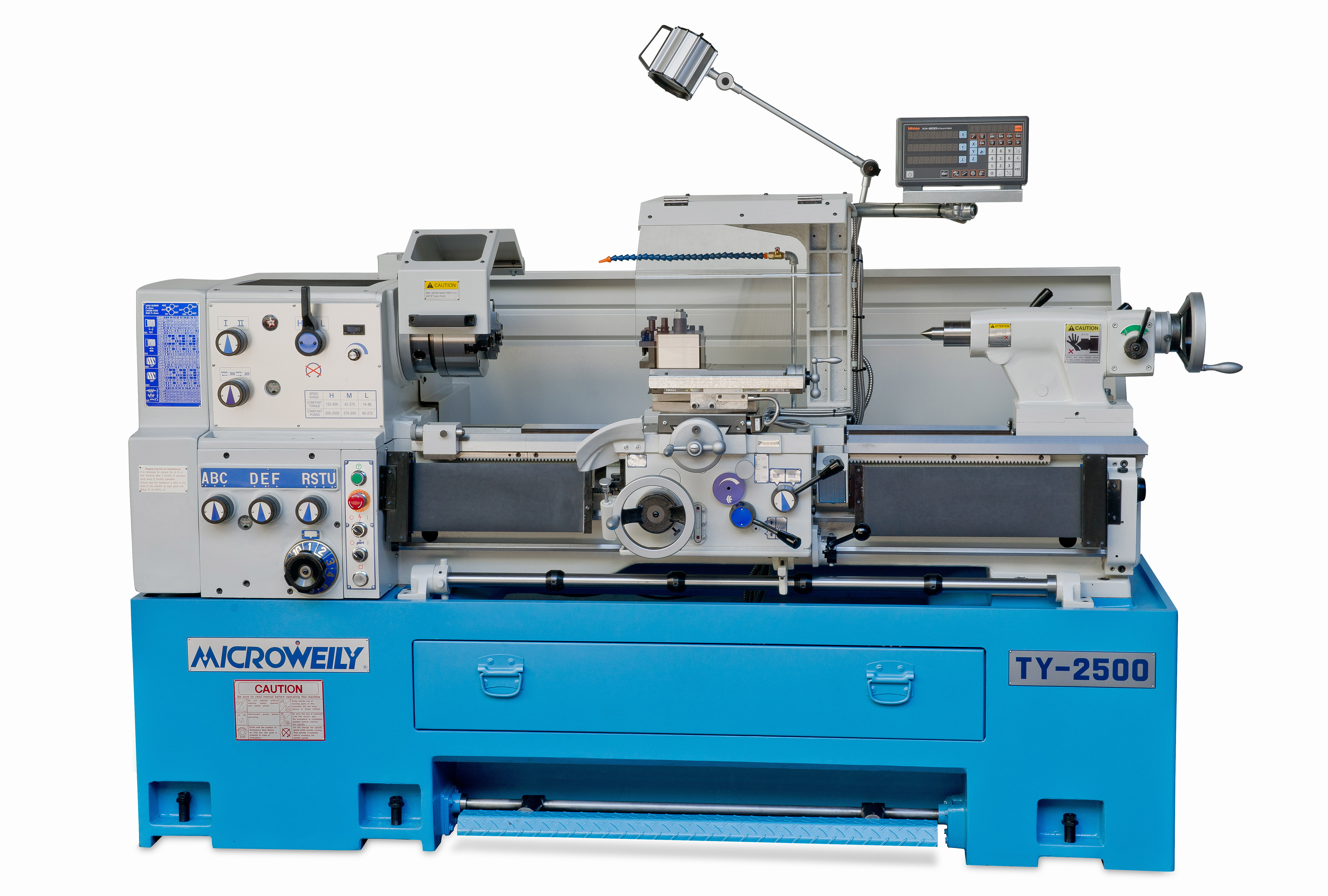

TY-2500

TY-2000

TY-2240VS  TY-22100VS

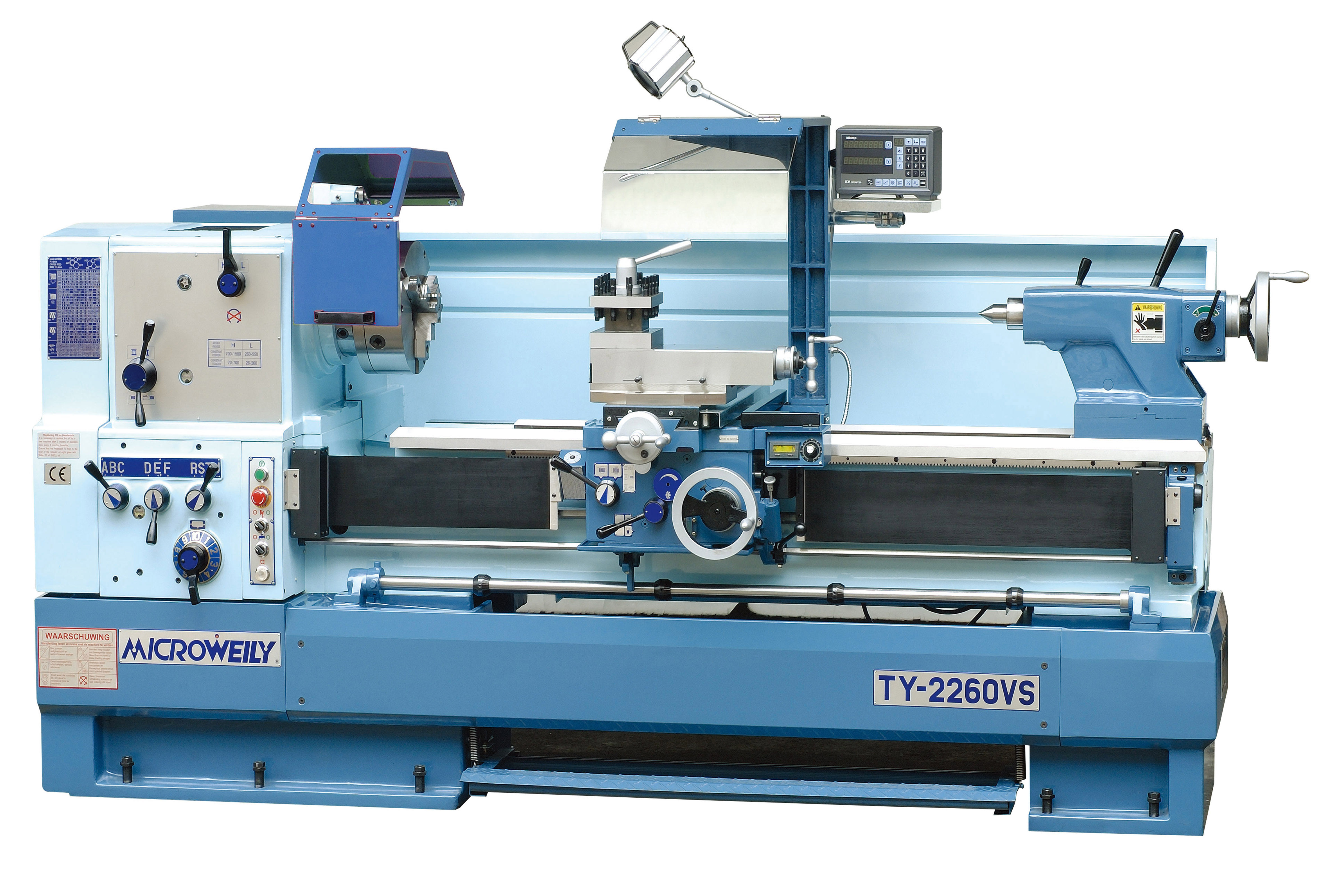

TY-2260VS  TY-22120VS
TY-2280VS  TY-22160VS

TY-2640VS  TY-26100VS
TY-2660VS  TY-26120VS
TY-2680VS  TY-26160VS

CAPACITY
&
DIMENSION

Swing over bed

458mm (18")

560mm (22")

660mm (26")

Swing over cross slide

288mm (11-1/3")

360mm (14-1/8")

440mm (17-5/16")

Swing in gap diameter

640mm (25-3/16")

745mm (29-1/3")

845mm (33-1/4")

Length of gap in front of face plate

180mm (7-1/16") (W/D1-6")
195mm (7-11/16") (W/A1-6")

180mm (7-1/16") (W/D1-8")

Center height

230mm (9")

280mm (11")

330mm (13")

Center admits between

1145mm (45")

1600mm (63")

1000mm (40") / 1530mm (60-1/4") /
2040mm (80-5/16")
2550mm (100-3/8") / 3060mm (120-1/2") /
4060mm (160")

Bed width

300mm (11-13/16")

400mm (15-3/4")

Motor for spindle

10HP, 3ph, 4P

15HP, 3ph, 4P

Motor for coolant pump

1/8HP, 3ph

1/8HP, 3ph

HEADSTOCK

Spindle bore

60mm (2-5/16")

104mm (4-1/16")

Spindle nose

D1-6" ASA Std., or A1-6" ISO Std.

D1-8" ASA Std.

Spindle taper in nose/sleeve

No.6/No.4

No.8/No.5

Speeds number

Variable x 3 Steps

Variable x 2 Steps

CARRIAGE
&
COMPOUND

Cross slide travel

265mm (10-7/16")

320mm (12-1/2")

380mm (14-15/16")

Compound rest travel

135mm (5-5/16")

255mm (10")

Leadscrew diameter & thread

35mm (1-3/8") / 6mm P or 4 T.P.I.

38mm (1-1/2") / 6mm P or 4 T.P.I.

THREADS
&
FEEDS

Imperial threads

60 Nos. 2-112 T.P.I.

60 Nos. 2-112 T.P.I.

Metric threads

60 Nos. 0.2-14mm Pitch

60 Nos. 0.2-14mm Pitch

Diametral pitch threads

50 Nos. 4-112 D.P.

50 Nos. 4-112 D.P.

Module pitch threads

50 Nos. 0.2-7 M.P.

50 Nos. 0.2-7 M.P.

Longitudinal feeds

Imperial

50 Nos. 0.0014"-0.0387"/rev.

50 Nos. 0.0014"-0.0387"/rev.

Metric

50 Nos. 0.037-1.04mm/rev.

50 Nos. 0.037-1.04mm/rev.

Cross feeds

Imperial

50 Nos. 0.0007"-0.01935"/rev.

50 Nos. 0.0007"-0.01935"/rev.

Metric

50 Nos. 0.0185-0.52mm/rev.

50 Nos. 0.0185-0.52mm/rev.

TAILSTOCK

Quill dia./travel

60mm (2-3/8") / 150mm (5-7/8")

75mm (2-15/16") / 160mm (6-5/16")

Quill taper

No.4 Morse

No.5 Morse

WEIGHT
&
MEASURES
(APPROX.)

Machine length

2435mm (95-7/8")

2935mm (115-1/2")

2538mm(100") / 3048mm (120") / 3558mm (140")
4068mm(160-1/8") / 4578mm (180-1/4")/
5598mm(220-2/5")

Machine width

1077mm (42-3/8")

1280mm (50-3/8")

Machine height

1230mm (48-7/16")

1305mm (51-3/8")

1355mm (53-1/3")

Packing dimensions

100" x 50" x 67"

120" x 50" x 67"

100" x 57" x 73"/125" x 57" x 73"/145" x 57" x 73"
165" x 57" x 73"/185" x 57" x 73"/223" x 57" x 73"

Net weight

1970kgs

2170kgs

2130Kg / 2380Kg / 2630Kg / 2880Kg / 3130Kg / 3630Kg

Gross weight

2270kgs

2470kgs

2280Kg / 2530Kg / 2780Kg / 3080Kg / 3330Kg / 3930Kg
