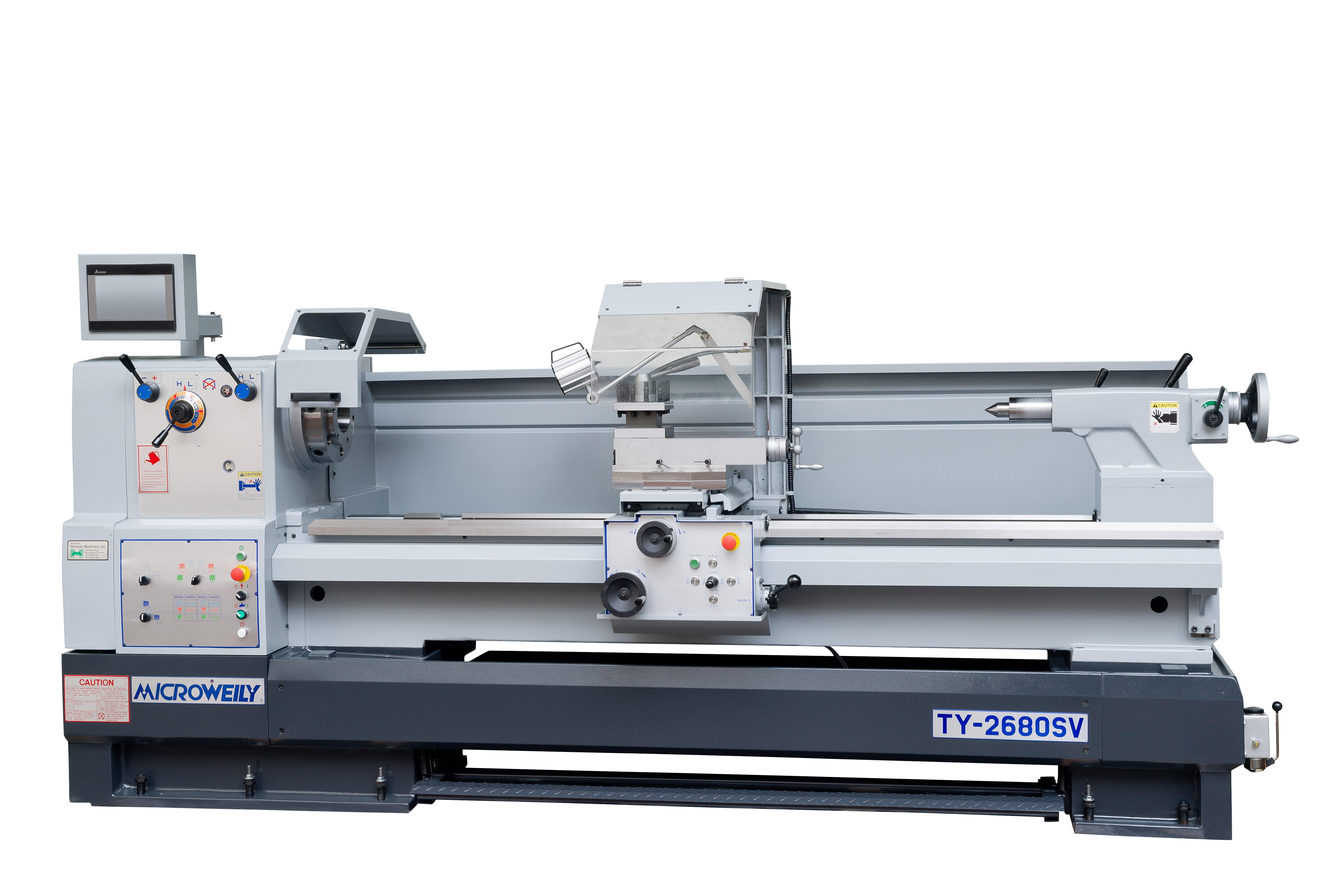

TY-22SV,26SV Servo Turn Lathe

22SV

26SV

MODEL

TY-2240SV
TY-2260SV
TY-2280SV

TY-2640SV
TY-2660SV
TY-2680SV

TY-26100SV
TY-26120SV
TY-26160SV

CAPACITY
&
DIMENSIONS

Swing over bed

560mm (22")

660mm (26")

Swing over cross slide

316mm (12-3/8")

416mm (16-3/8")

Swing in gap diameter

745mm (29-3/8")

845mm (33-1/4")

Length of gap in front of
face plate

180mm (7-1/16") (W/D1-8) / 200mm (7-7/8") (W/A1-8)
165mm (6-1/2") (W/D1-11) / 185mm (7-1/4") (W/A1-11)

Center height

280mm (11")

330mm (13")

Center admits between

1000mm (40") / 1530mm (60-1/4") / 2040mm (80-5/16")
2550mm (100-3/8") / 3060mm (120-1/2") / 4060mm (160")

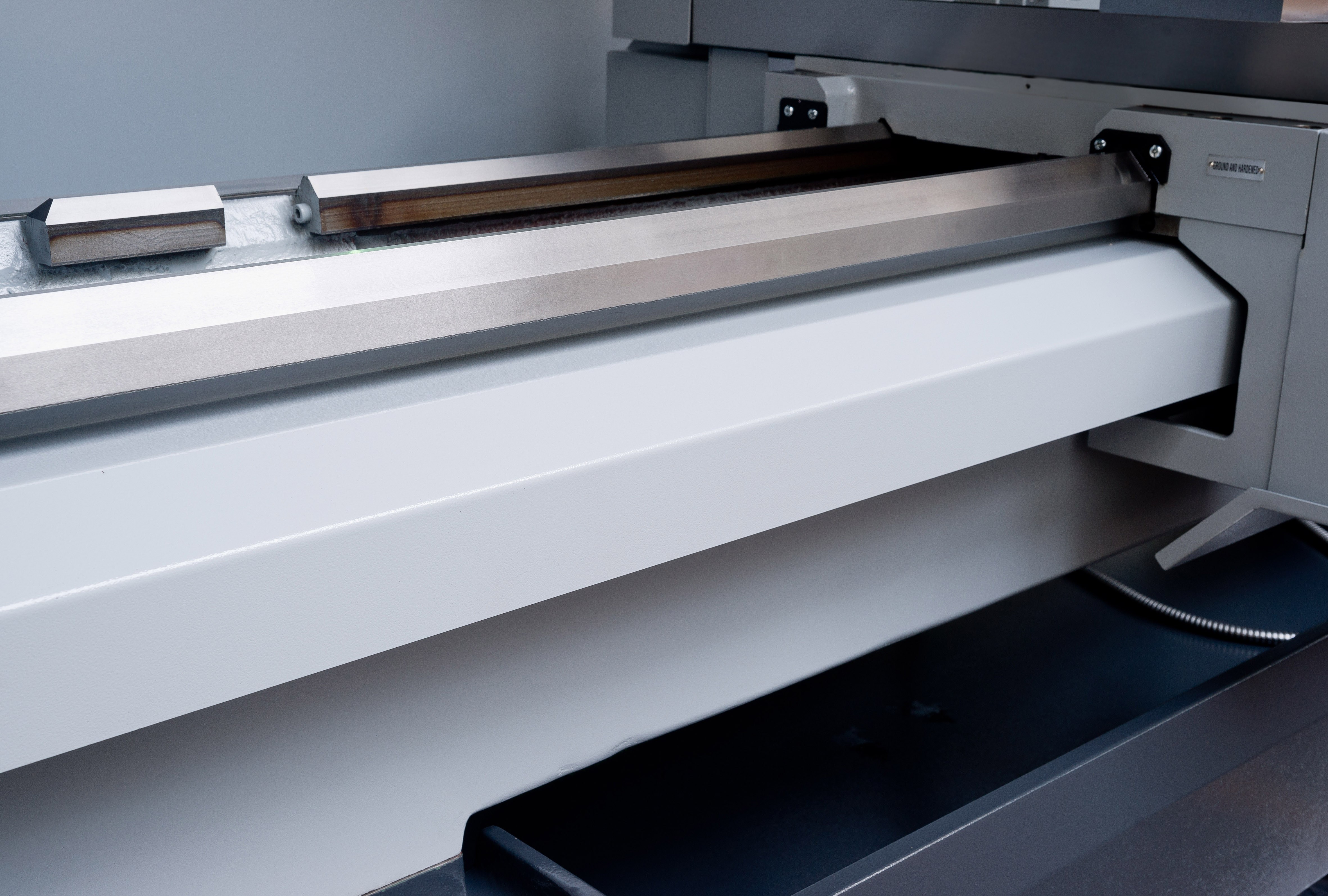

Bed width

400mm (15-3/4")

Motor for spindle

10HP, 3ph (Standard) / 15HP, 3ph (Optional)

Motor for coolant pump

1/8HP, 3ph

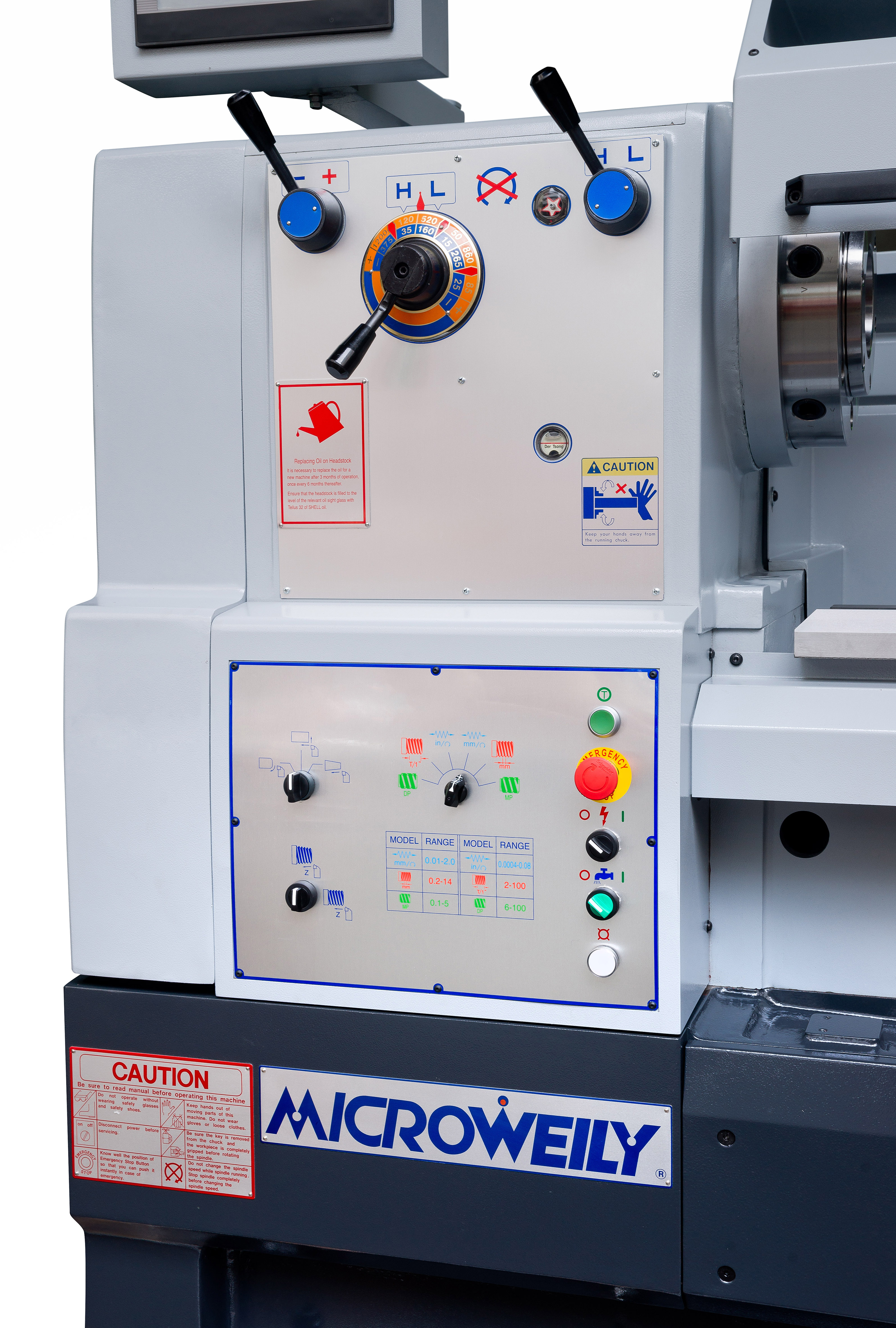

HEADSTOCK

Spindle bore

80mm (3-1/8", Standard) / 105mm (4-1/8") (Optional)

Spindle nose

D1-8"ISO or A1-8"ISO (Standard) / D1-11"ISO or A1-11"ISO (Optional)

Spindle taper in nose/sleeve

No.7/No.5 (Standard) / No.8/No.5 (Optional)

Speed number

12

Speeds range

20-1550 r.p.m. (Standard) / 15-1200 r.p.m. (Optional)

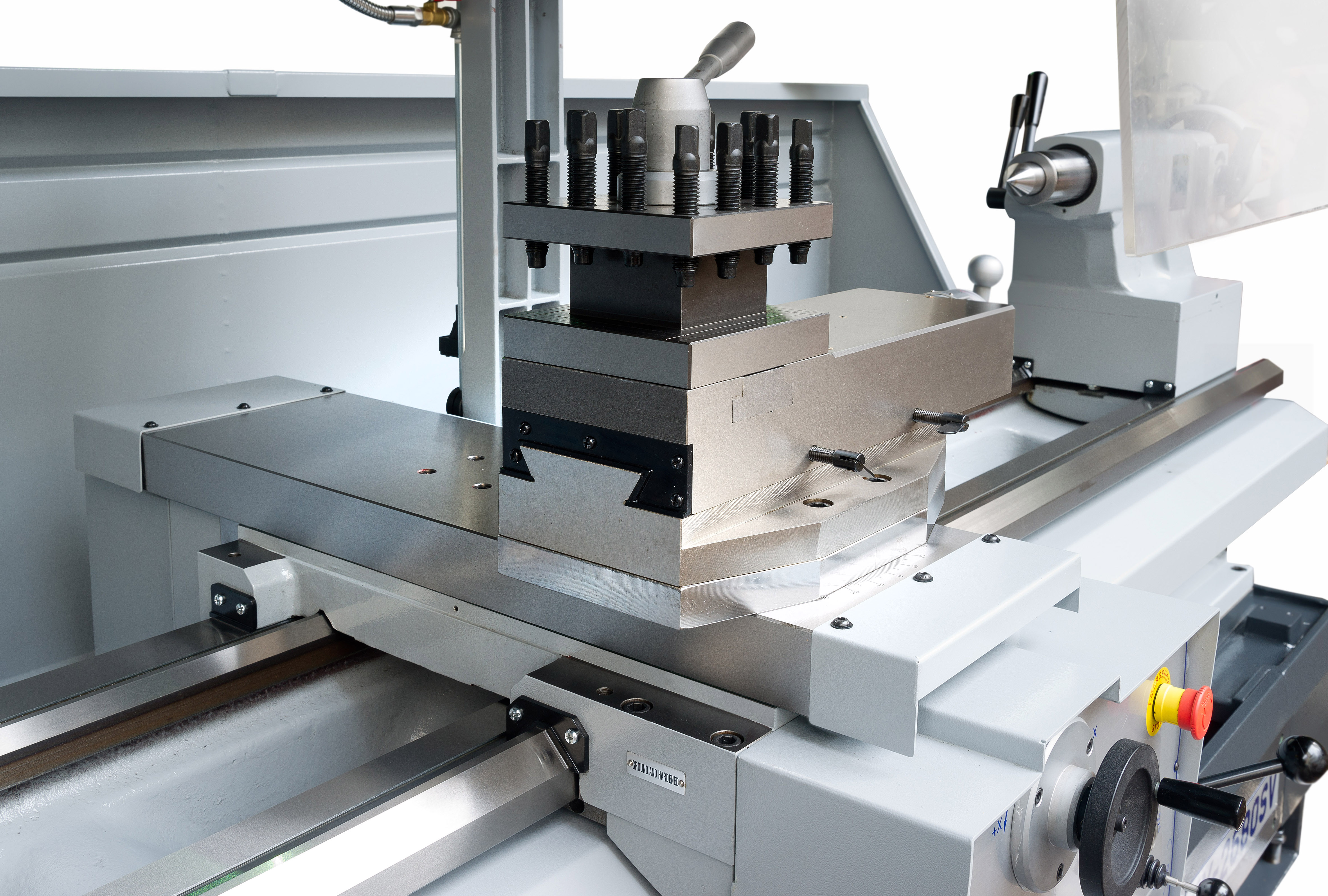

CARRIAGE
&
COMPOUND

Cross slide travel

370mm (14-1/2")

Compound rest travel

255mm (10")

THREADS
&
FEEDS

Imperial threads

2-100 T.P.I. (Stepless)

Metric threads

0.2-14mm Pitch (Stepless)

Diametral pitch threads

6-100 D.P. (Stepless)

Module pitch threads

0.1-5 M.P. (Stepless)

Longitudinal & Cross feeds

0.01-20mm (0.0004"-0.08"/rev.) (Stepless)

BALLSCREW DIAMETER/PITCH

X-axis

25mm (63/64") x Pitch 5

Z-axis

40mm (1-9/16") x Pitch 5

TAILSTOCK

Quill dia./travel

75mm (2-15/16") / 160mm (6-5/16")

Quill taper

No.5 Morse

WEIGHT
&
MEASURES
(APPROX.)

Machine length

2538mm (100") / 3048mm (120") / 3558mm (140")
4068mm (160-1/8") / 4578mm (180-1/4") / 5598mm (220-2/5")

Machine width

1280mm (50-3/8")

Machine height

1670mm (65-3/4")

Packing dimensions

100" x 54" x 70"/125" x 54" x 70"/140" x 54" x 70"
165" x 54" x 70"/185" x 54" x 70"/223" x 54" x 70"

Net weight

2030kgs (TY-2240SV) / 2280kgs (TY-2260SV) / 2530kgs (TY-2280SV)
2780kgs (TY-22100SV) / 3030kgs (TY-22120SV) / 3530kgs (TY-22160SV)
2080kgs (TY-2640SV) / 2330kgs (TY-2660SV) / 2580kgs (TY-2680SV)
2830kgs (TY-26100SV) / 3080kgs (TY-26120SV) / 3580kgs (TY-26160SV)

Gross weight

2260kgs (TY-2240SV) / 2530kgs (TY-2260SV) / 2800kgs (TY-2280SV)
3070kgs (TY-22100SV) / 3340kgs (TY-22120SV) / 3880kgs (TY-22160SV)
2310kgs (TY-2640SV) / 2580kgs (TY-2660SV) / 2850kgs (TY-2680SV)
3120kgs (TY-26100SV) / 3390kgs (TY-26120SV) / 3930kgs (TY-26160SV)
