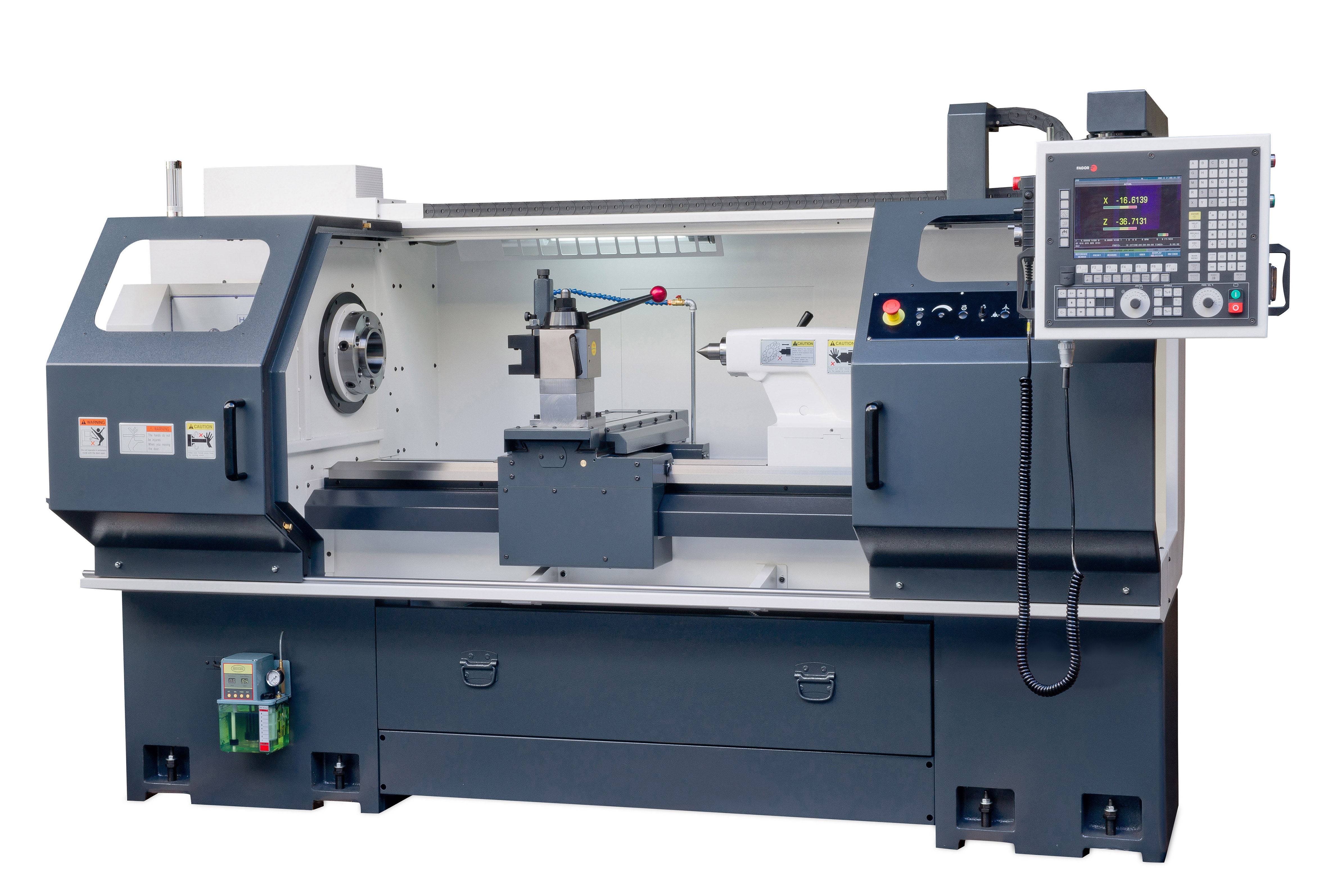

TY-24CNC HIGH SPEED PRECISION LATHE
SPECIFICATION
| Swing over bed |
610mm (24") |
|
Swing over cross slide |
370mm (14.50") |
|
Center height |
305mm (12") |
|
Center admits between |
1500mm (59") |
|
Bed width |
400mm (15.75") |
|
Spindle nose |
D1-8 |
|
Spindle bearing |
Taper roller |
|
Spindle taper in nose |
MT #8 |
|
Spindle bore |
104mm (4.09") |
|
Spindle speed range |
20-1600 r.p.m. |
|
Motor for main spindle/coolant pump |
15HP / 1/4HP |
|
Cross slide travel (X-axis) |
320mm (12.60") |
|
Longitudinal travel (Z-axis) |
1500mm (59") |
|
Ballscrew diameter X-axis/Z-axis |
25mm (0.984") / 32mm (1.26") |
|
Cross slide dimension |
760mm (29.90") x 230mm (9.05") |
|
Rapid traverse X-axis |
5m/min |
|
Rapid traverse Z-axis |
5m/min |
|
Tailstock quill diameter |
75mm (2.95") |
|
Tailstock quill travel |
160mm (6.30") |
|
Tailstock quill taper |
MT #5 |
|
Machine dimension (L x W x H) |
3260mm x 1900mm x 1840mm |
|
Packing dimension (L x W x H) |
131" x 80" x 83" |
|
Machine weight |
NW: 4000kgs / GW: 4200kgs |
*Design and specifications are subject to change without notice.
