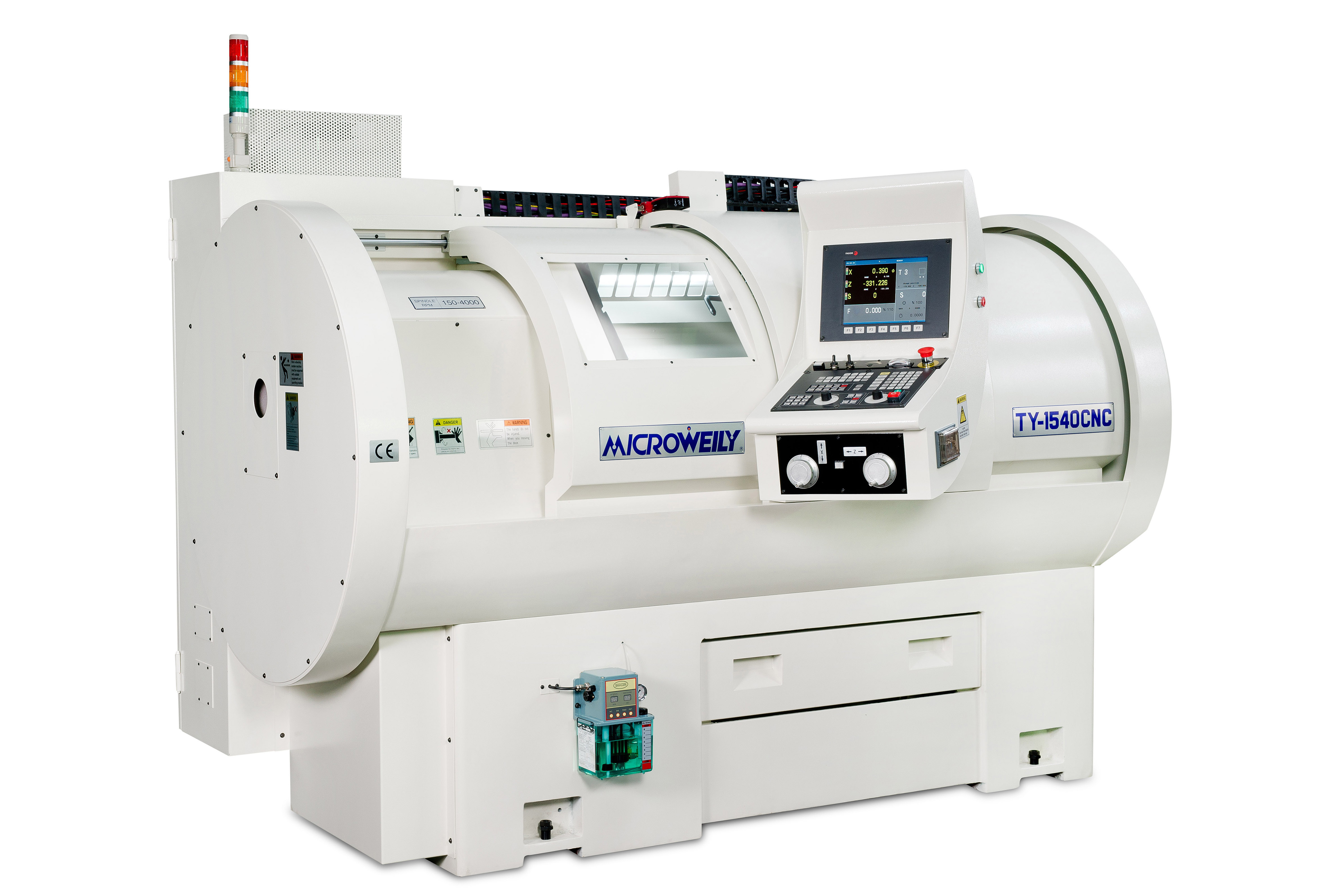

TY-15CNC HIGH SPEED PRECISION LATHE
SPECIFICATION
| Swing over bed |
406mm (16") |
|
Swing over cross slide |
168mm (6-5/8") |
|
Center height |
203mm (8") |
|
Center admits between |
1000mm (40") |
|
Bed width |
320mm (12-5/8") |
|
Bed length |
1900mm (74-3/4") |
|
Bed height |
320mm (12-5/8") |
|
Motor for main spindle |
10HP |
|
Motor for coolant pump |
1/8HP |
|
Spindle speeds range |
40-4000 r.p.m. |
|
Spindle nose |
No. A2-5 |
|
Spindle taper in nose/sleeve |
MT No.6/4 |
|
Spindle bore |
54mm (2-1/8") |
|
Longitudinal travel (Z-axis) |
1000mm (40") |
|
Cross slide travel (X-axis) |
270mm (10-5/8") |
|
Cross slide dimension |
560mm (22") x 190mm (7-1/2") |
|
Tailstock quill diameter |
60mm (2-3/8") |
|
Tailstock quill travel |
150mm (5-7/8") |
|
Tailstock quill taper |
MT No.4 |
|
Ballscrew diameter X-axis |
25mm (63/64") |
|
Ballscrew diameter Z-axis |
32mm (1-1/4") |
|
Servo motor for X, Z-axis |
1 KW |
|
Rapid traverse X, Z-axis |
5m/min (196 IPM) |
|
Machine weight |
1900kgs |
|
Machine length |
2490mm (98") |
|
Machine width |
1280mm (50-2/5") |
|
Machine height |
1710mm (67-1/3") |
|
Gross weight |
2300kgs |
|
Packing dimension (L x W x H) |
111" x 79" x 80" |
*Design and specifications are subject to change without notice.
