TY-16S,18TS,1845

16S

18TS

18

MODEL

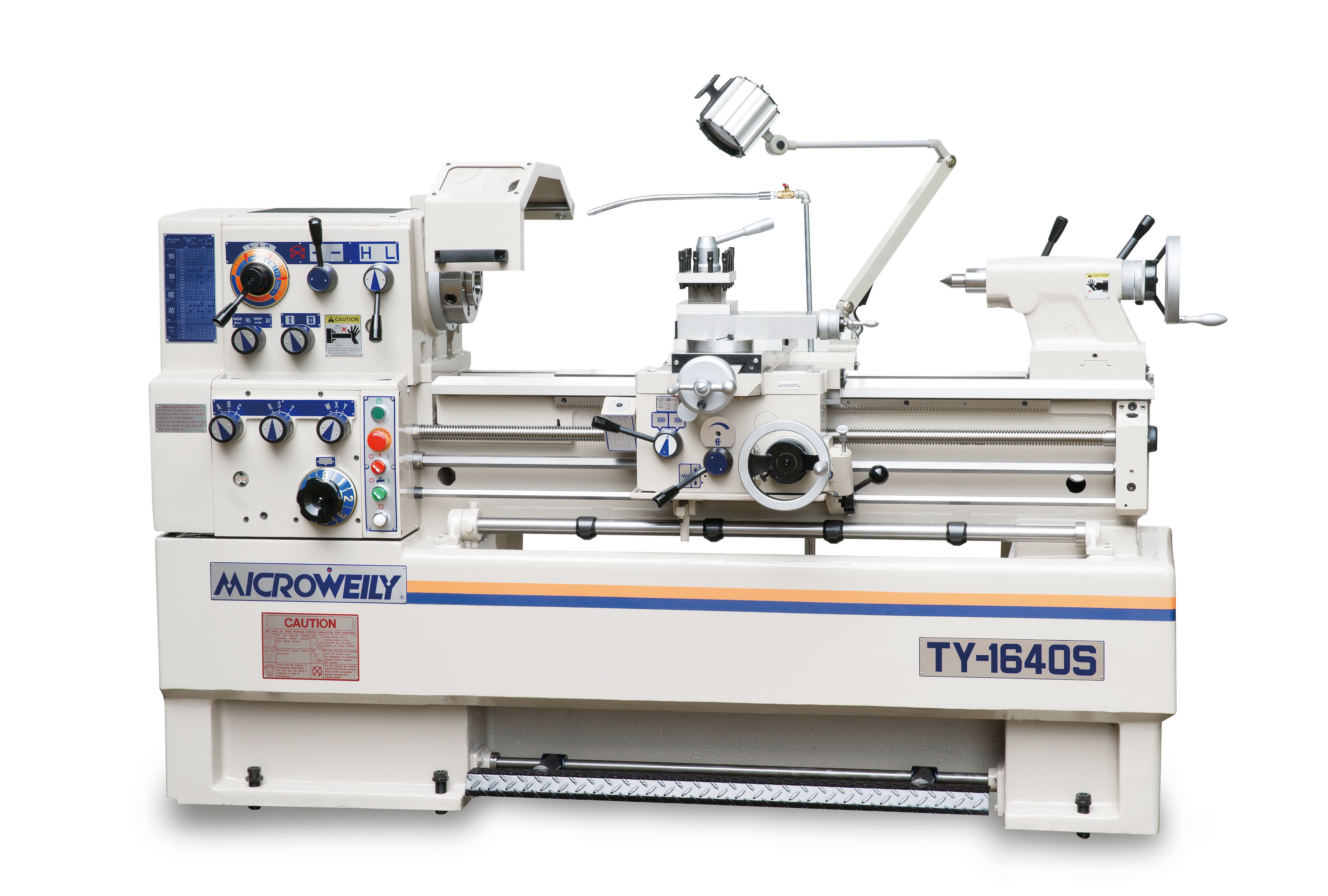

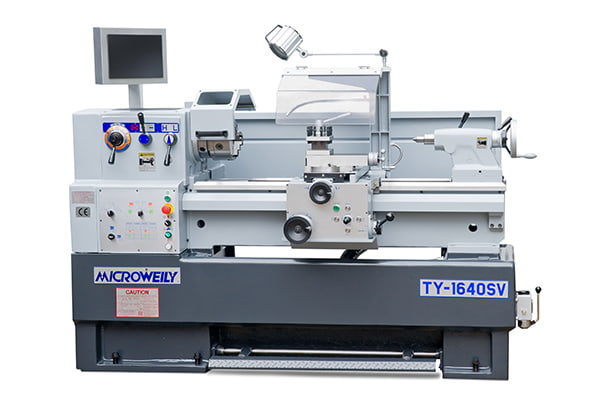

1630S/1640S/1660S

1830TS/1840TS/1860TS

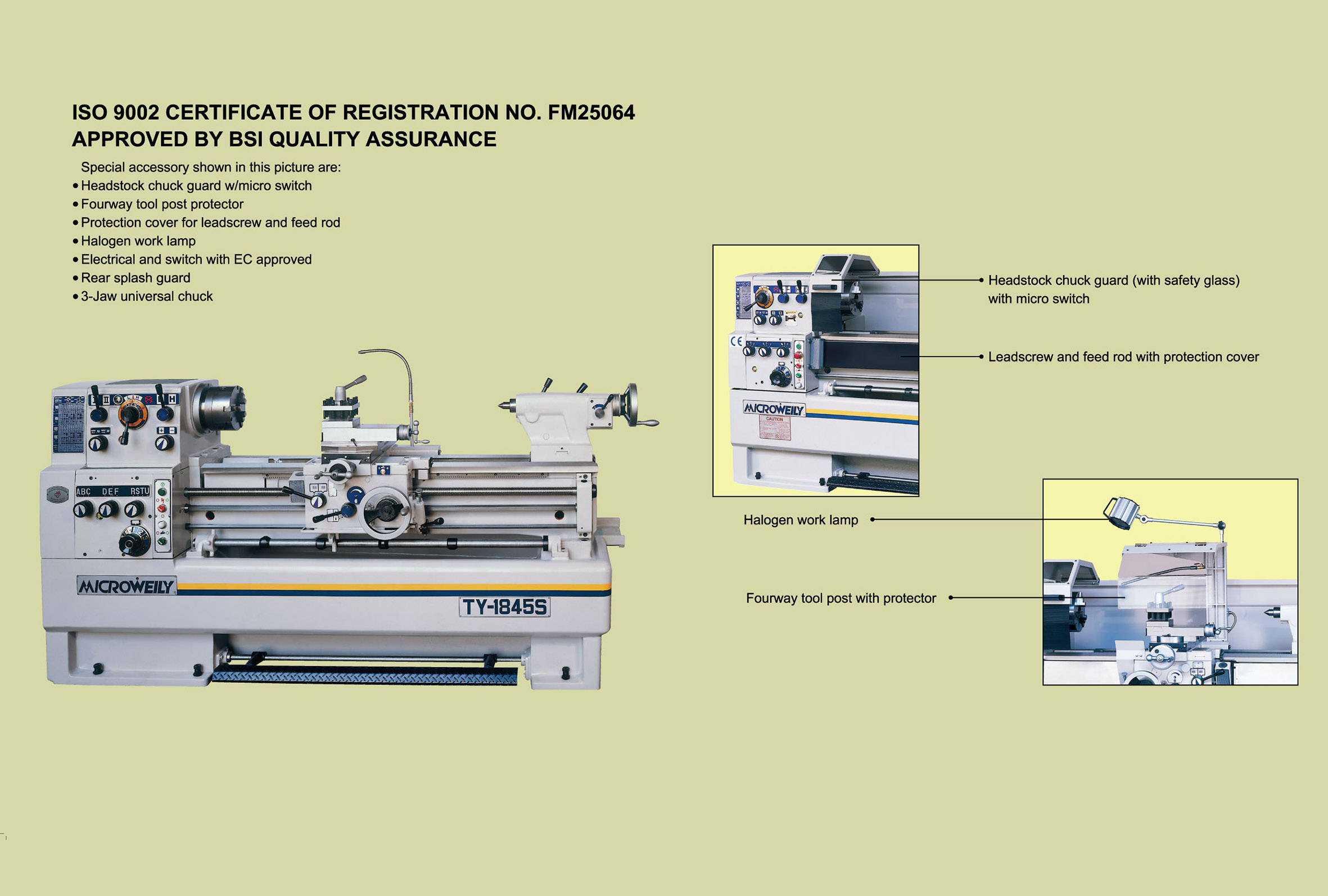

1845S

CAPACITY
&
DIMENSIONS

Swing over bed

410mm (16")

458mm (18")

Swing over cross slide

240mm (9-7/16")

288mm (11-5/16")

Swing in gap diameter

595mm (23-7/16")

640mm (25-3/16")

Length of gap in front of
face plate

155mm (6-1/8") (W/D1-6)
175mm (6-7/8") (W/A1-6)

180mm (7-1/16") (W/D1-6)
195mm (7-11/16") (W/A1-6)

Center height

205mm (8-1/16")

230mm (9")

Center admits between

762mm (30") / 1016mm (40") / 1530mm (60")

1145mm (45")

Bed width

300mm (11-13/16")

Bed length

1646mm (64-13/16")
1900mm (74-3/4") / 2415mm (95-1/16")

2095mm (82-1/2")

Bed height

310mm (12-7/32")

340mm (13-3/8")

Motor for main spindle

5HP, 3ph, 4P / 7-1/2HP, 3ph, 4P (Optional)

7-1/2HP, 3ph, 4P

Motor for coolant pump

1/8HP, 3ph, 2P

HEADSTOCK

Spindle bore

52mm (2-1/16")

60mm (2-3/8")

58mm (2-1/4")

Spindle nose

D1-6" ASA Std., A1-6" ISO Std.

Spindle taper in nose/sleeve

No.6/No.4

Speeds number

12

Speeds range

30-2000 r.p.m.

CARRIAGE
&
COMPOUND

Cross slide width/travel

180mm (7-3/32") / 230mm (9")

190mm (7-1/2") /
265mm (10-7/16")

Compound rest width/travel

110mm (4-11/32") /
120mm (4-3/4")

125mm (4-15/16") / 135mm (5-5/16")

Leadscrew diameter & thread

32mm (1-1/4") / 6mm P or 4 T.P.I.

35mm (1-3/8") /
6mm P or 4 T.P.I.

THREADS
&
FEEDS

Imperial pitches

40 Nos. 2-56 T.P.I.

60 Nos. 2-112 T.P.I.

Metric pitches

53 Nos. 0.4-14mm Pitch

60 Nos. 0.2-14mm Pitch

Diametral pitches

32 Nos. 4-32 D.P. (Optional)

50 Nos. 4-112 D.P. (Optional)

Module pitches

44 Nos. 0.4-7 M.P. (Optional)

50 Nos. 0.2-7 M.P. (Optional)

Cross feeds Imperial Metric

40 Nos. 0.0006"-0.0126"/rev.
40 Nos. 0.016mm-0.449mm/rev.

50 Nos. 0.0007"-0.01935"/rev.
50 Nos. 0.0185mm-0.52mm/rev.

Longitudinal Imperial Metric

40 Nos. 0.0012"-0.0252"/rev.
40 Nos. 0.032mm-0.898mm/rev.

50 Nos. 0.0014"-0.0387"/rev.
50 Nos. 0.037mm-1.04mm/rev.

TAILSTOCK

Quill diameter/travel

54mm (2-1/8") / 120mm (4-3/4")

60mm (2-3/8") /
150mm (5-7/8")

Quill taper

No.4 Morse

WEIGHT
&
MEASURES
(APPROX.)

Machine length

1986mm (78-3/16")
2240mm (88-1/4") / 2755mm (108-7/16")

2435mm (95-7/8")

Machine width

980mm (38-5/8")

1077mm (42-3/8")

Machine height

1205mm (47-1/2")

1230mm (48-7/16")

1245mm (49")

Packing dimensions

81" x 44" x 65"/91" x 44" x 65"/112" x 44" x 65"

99" x 44" x 65"

Net weight

1575kgs / 1750kgs / 2000kgs

1810kgs

Gross weight

1800kgs / 2000kgs / 2300kgs

2160kgs
